· Registered
K-RZ [email protected], 551 Hp 400 TQ
Joined
·
267 Posts
Discussion Starter · #101 ·
Long time since i posted,because i was sorting out the fuel pressure drop at full boost.Atlast it has been sorted out.took a month by trying to figure out where was the hinderance to fuel feed.
The datalogues showed very lean AFR's at 1 bar boost and injectors were at 100% duty cycle at top.i was using AEm 310 LPH fuel pump and 1000 cc FIC injectors which should be fine near 800 hp but mine was near 400 hp+-.After raising fuel pressure still no avail.

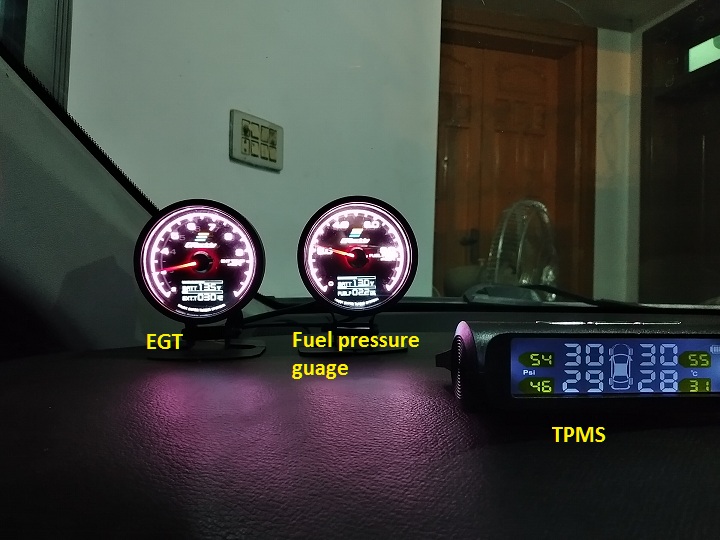

Already i have a mechanical fuel guage in engine bay but could not see the fuel pressure inside the car while driving.So to figure this out i installed a digital fuel pressure guage inside car and which told the whole story.

The pressure dropped at full boost,from 4 bar to 1.5 bar.very lean under full boost (15.4 Afr,Thank God engine did't blow)
Initially i thought the OEM feed lines were smaller diameter inside.

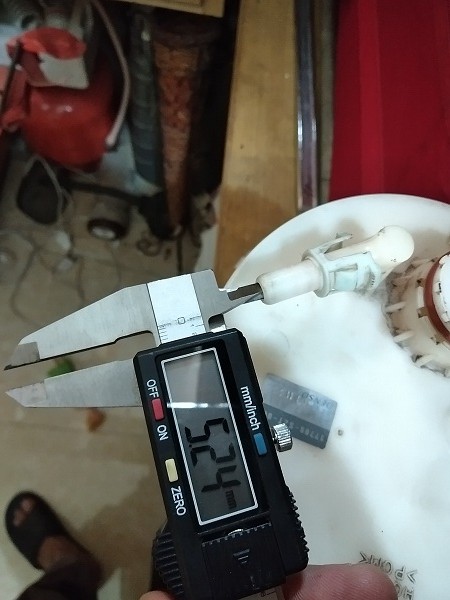

The inner dia is 5.2mm(Equals -AN5). But outer fitting is 3/8(equals -AN8) which is should be near 9 mm. So that means Honda used thick plastic here which reduced inside diameter.

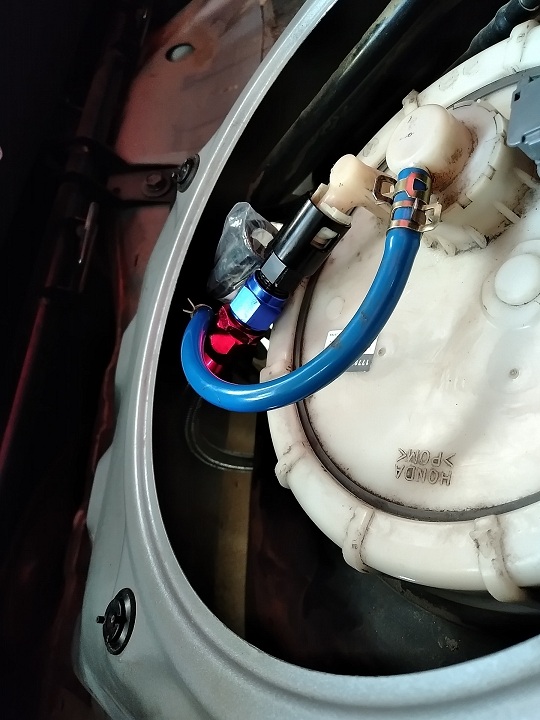

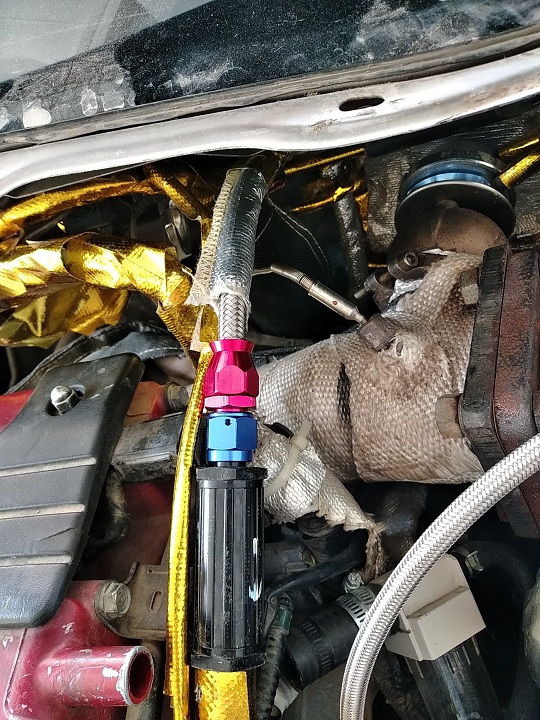

So i bought new PTFE -6An steel braided line and installed it from here to engine.(i thought the OEm feed lines have many bends in them so a staight line will help)


All way to engine bay,but still no benifit.


So next i searched and found that may be the OEM wiring is not thick enough so fuel pumps is not getting its desired ameres to fully pump the fuel.

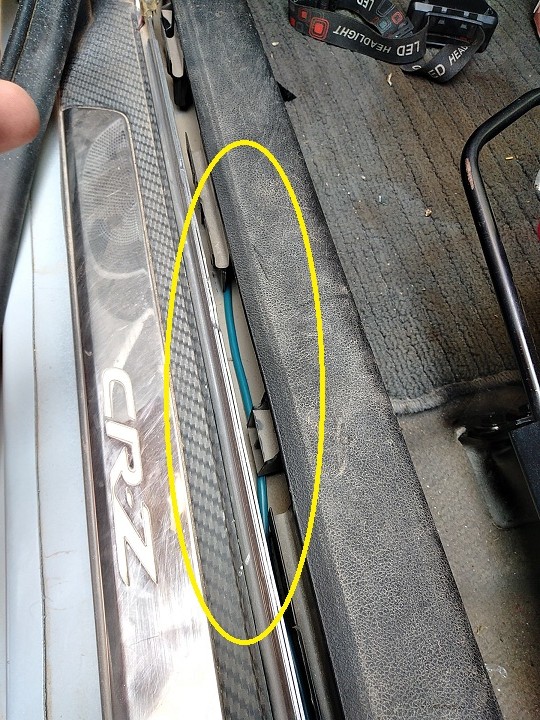

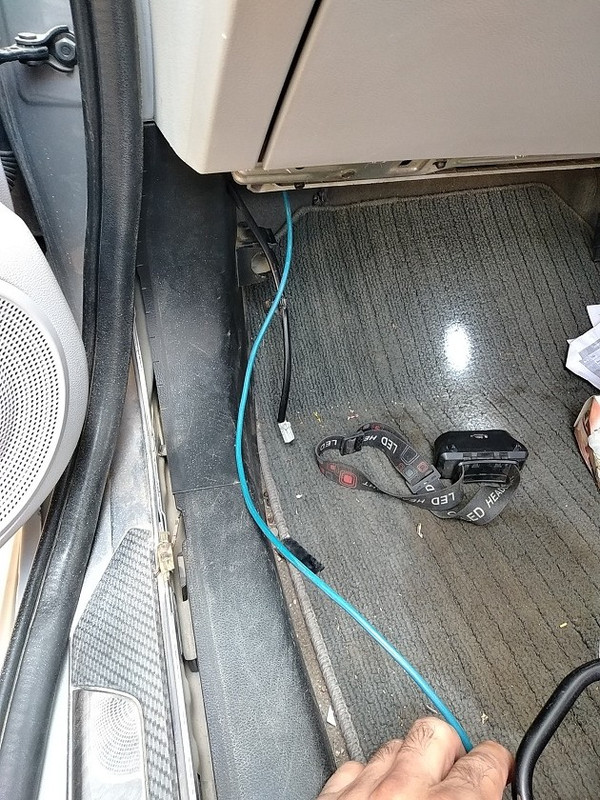

Got a 12 AWG thick copper wire and passed all way from battery too fuel assembly.

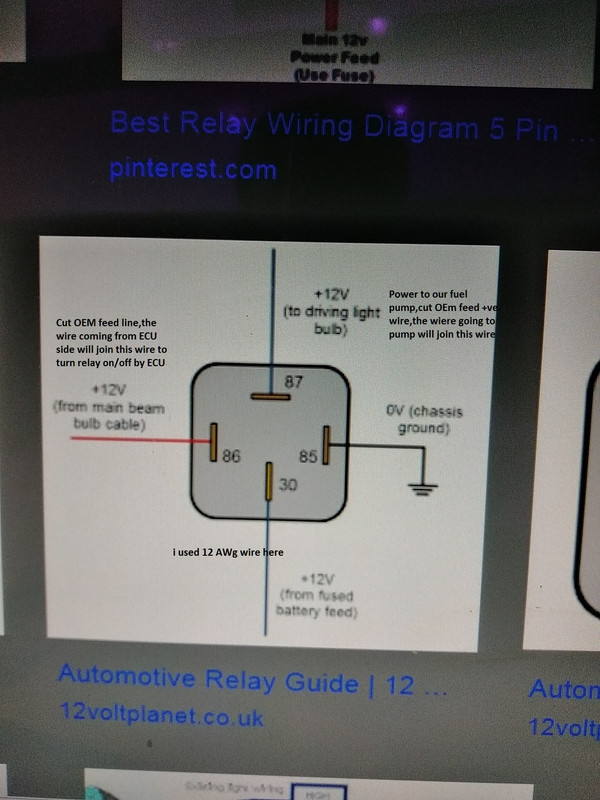

I used a 4 prang relay,40 Amps, the digram used

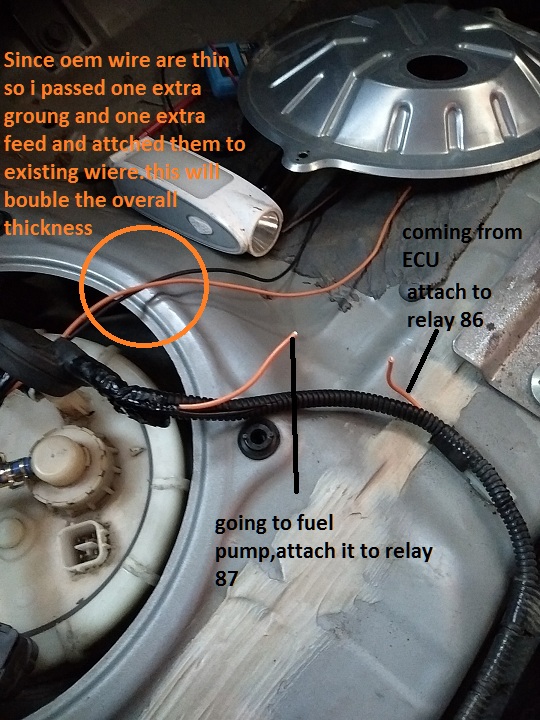

OEM feed line cut. The wire end coming from ECU will join Relay 86 and the wire to the fuel pump will join realy 87. Number 30 of relay will join my new 12 awg wire. 85 is ground which i attached to rear seat belt bolt.also 12 awg thich copper wire here.

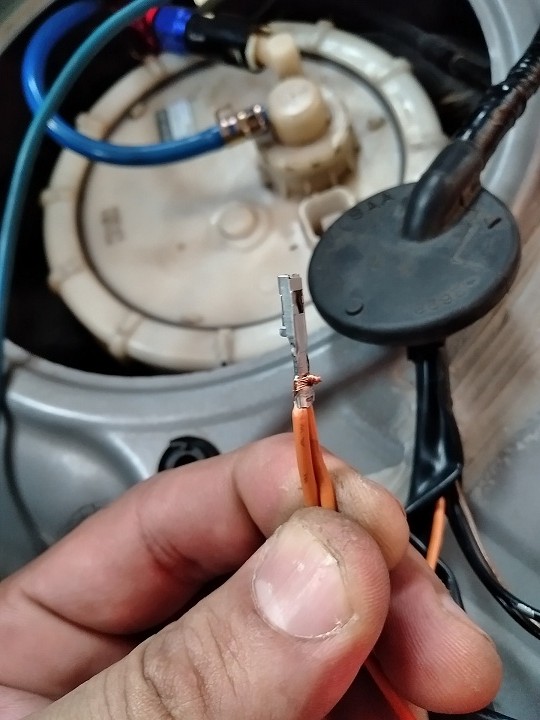

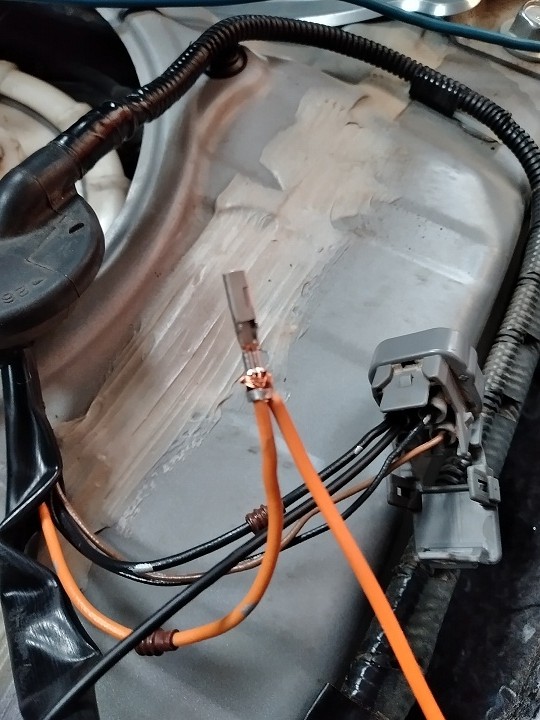

As the wiere from battery to relay was thick but still from relay to fuel pump was OEm thin wiere.so i added another wiere to it

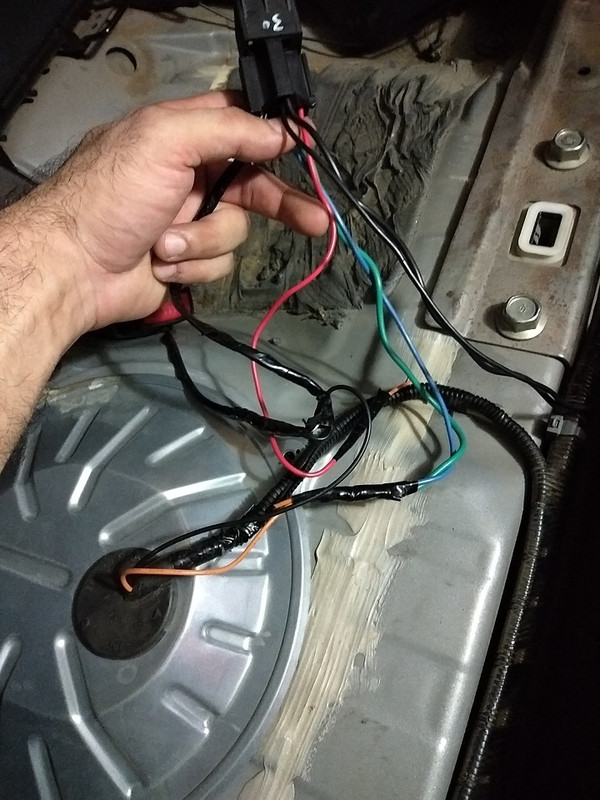

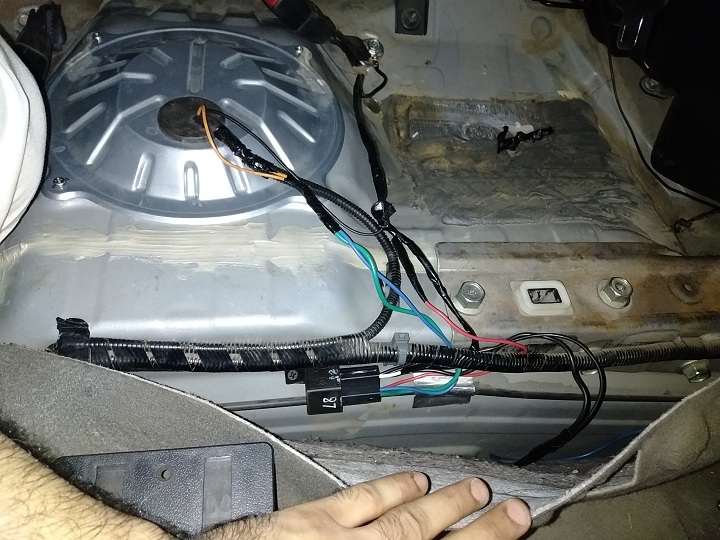

Relay wired

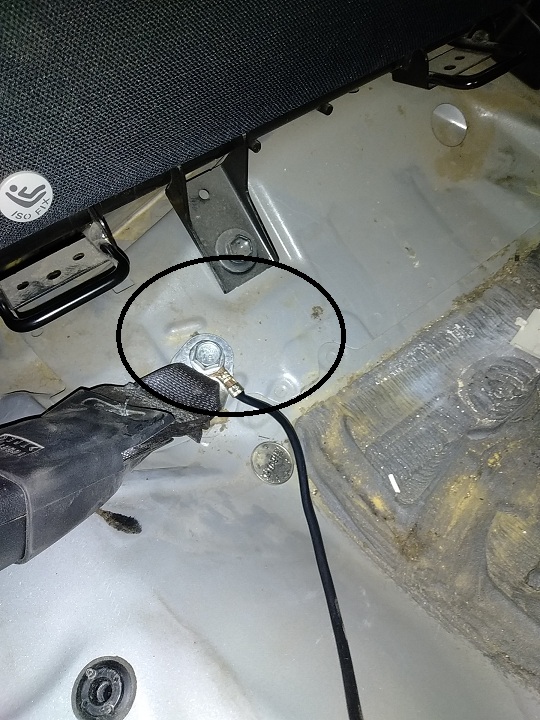

Ground

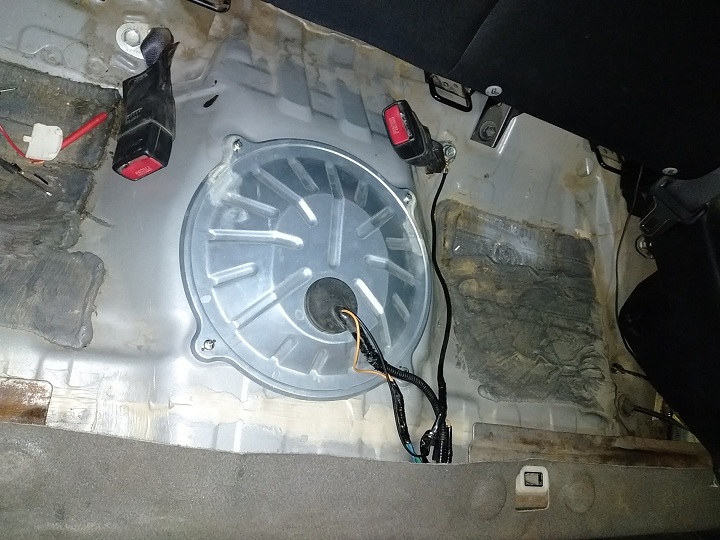

Done.and tugged





But the promlem persisted.same fule pressure drop.

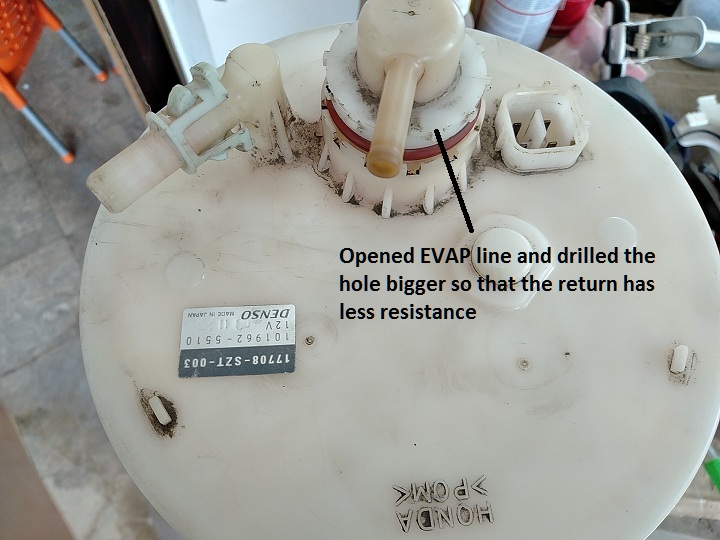

now i was frustrated. I thought my return(OEm EVAp) line is restrcition. So i drilled it to bigger bore.

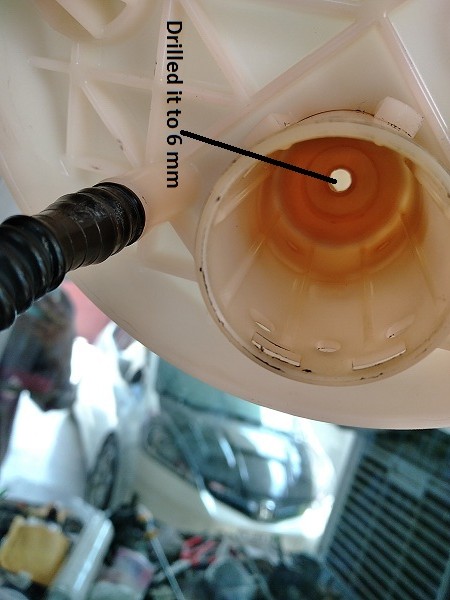

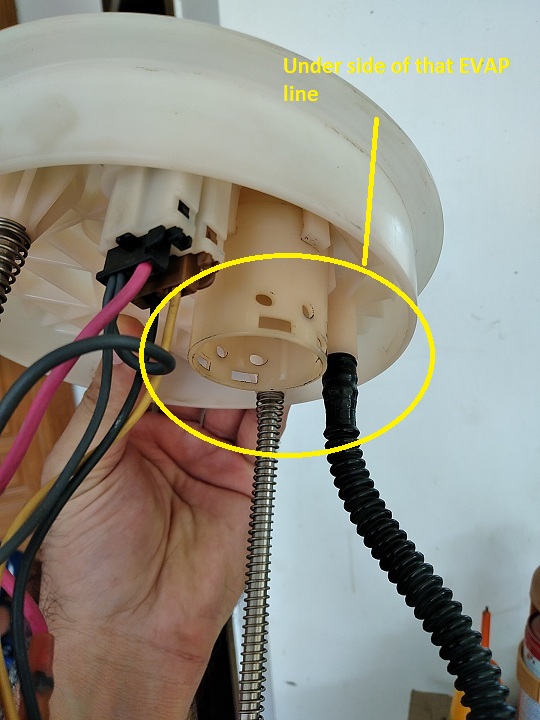

Underside of my reutn line


Drilled with 6 mm bit


Aaaaaand still no benefit.same pressure drop.
I was thinking may be my fuel pump is not enough and i was ordering a 450 walbro. But online seaches showed 310 LPH pump should be good apto 800 hp.
Frustrated i opened the fuel assembly again to look may be some loose O-ring or some other season.

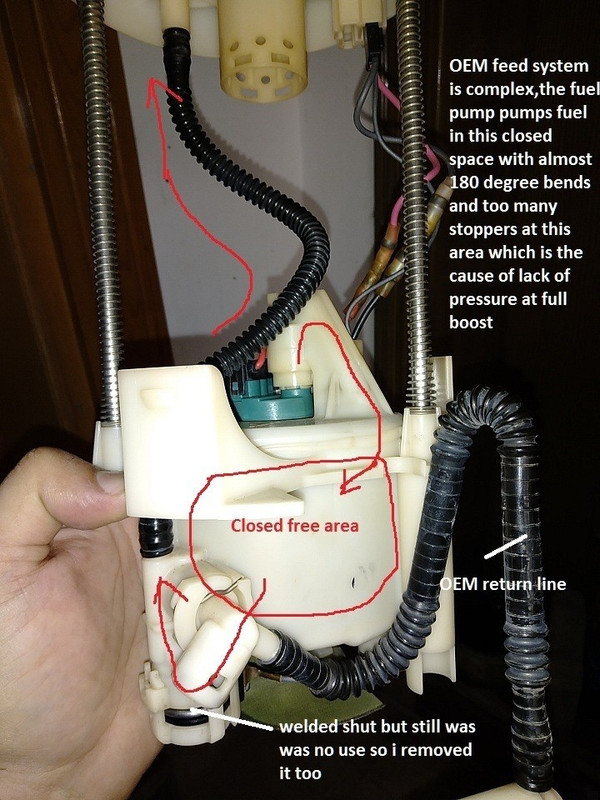

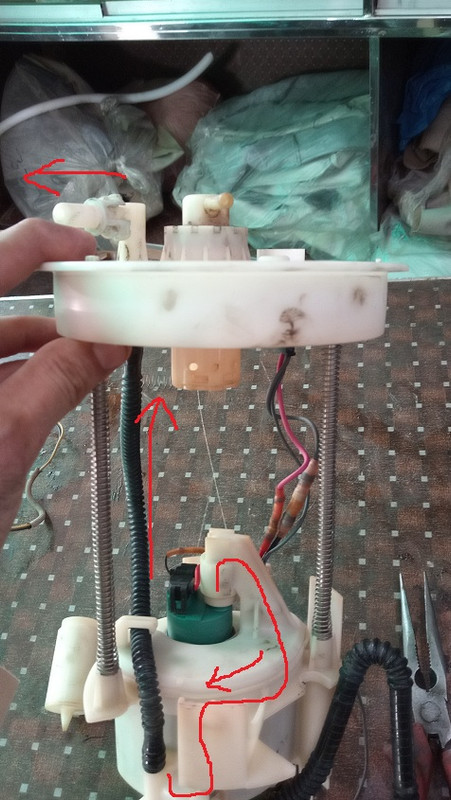

and by close imspection i found the OEM feed is quite complex.almost 180 bends and too many factors playing.and the fuel pump pumping in a closed space,not in a pipe



· Registered
K-RZ [email protected], 551 Hp 400 TQ
Joined
·
267 Posts
Discussion Starter · #102 · (Edited)
After removing the pump,lets cut the OEM feed mechanish and install a direct new feed line





New PTFE line


Installed on fuel pump.



Dont worry that the pump pump is held only by zip tie,there is a strong plastic plate underneath the fuel pump which holds it tight. I used zip tie to make it extra stable




Another view


Now lets open up the OEM fuel feed hole

Removed the check valve,(now i will have to be extra cautious of driving with near empty fuel tank)



Still frustrated that no factor should be un left now,i opned a hole saw hole under bottom where fuel filter will be.Now the fuel pump will not depend on this hole for feed,it will directly pick up under bottom of fuel tank.(no more worry of driving with low fuel tank)






After every thing is done.removed all extra parts in that closed OEm feed space,although now its does't matter as i have bypassed it.


Aaaaand i am so happy that fuel pressure is not dropping anymore.instead it rises with boost with 1:1 as it should be. The AFR were below 10. I had to tune and had to remove near 40% fuel and still duty cycle is only 48%. So i am so glad that the problem sorted out.

A pic during my self tuning session



So now that i have experimented all this.if i had to do this again.here what i will do in this order.
1. Use OEm feed lines,Oem EVAp line a s return.
2: Install fuel rail,injectors, FPR.
3:Open fule pump assembly,install feul pump and install a direct feed line by bypassing that Honda close fuel compartment altoghather.
4:drill out OEm EVAp (our return) to big hole
This should be enough to support near 600 Hp.
5: Remove the back check valve
6:Optional... Remove the underside plastic where fuel filter is
7 Optional :Upgrade fuel pump wiring.I think it was not needed in my case but now its done.(i have read that late honda models OEm wiring is quite enough).

So here we are.completing the fuel setup atlast.i am booking my time with dyno and tuner in next week may be. i am hoping near 550 hp.
i will keep posted InshaAllah.
and in future i may install oil cooler.That is the last on my mod list in this build.the oil temps are with in normal range now but i think when it will be 500+ hp,i may need seperate oil cooler.
Sorry about spelling mistakes as i have no time to prrof read.its getting so late and i had so busy day with all this stuff.very tired also.but was worth the effort ☺


· Registered
K-RZ [email protected], 551 Hp 400 TQ
Joined
·
267 Posts
Discussion Starter · #107 · (Edited)

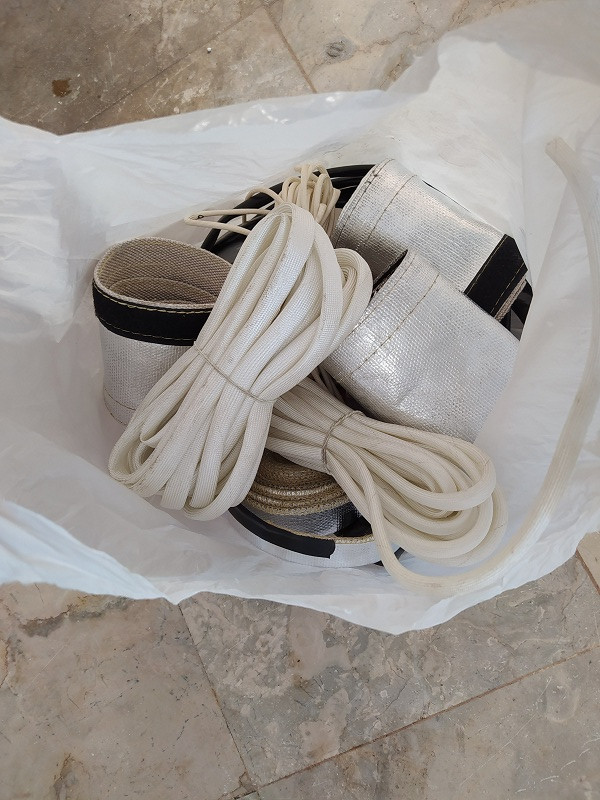

I ordered some heat sleeves and thought the oil pressure and temperature sensors wires needed protection from heat as they are passing above exhaust manifold and wastegate.




To seal the thread i have found the epoxy works very well. you can use JB weld etc



Next from aliexpress i ordered and instelled Dual stage Boost controller. Its copy of turbosmart one but works just fine.People install them in engine bay which leads to rusitng and failure.i planned to install it in cabin.



Both low and high boost controls are in hand reach

This toggle switch shifgt it from low to high boost settings


i have set low at 350 hp and high at 500. with just flip of switch its shifts between two modes

It has a 'T' which has a spring and a ball. This helps turbo spool super quick. If you dont need such a quick spool,remove them. i have kept mine. i removed it 1st but boost was coming slow.now it feels much aggressive response.




I highly recommend this mode for high hp applications.because we have FWD car. High hp spins tyres. So for daily agressive/spirited drive low Hp (near 300-350) is best.It doest spin tyres so much. When on highway and in higher gears full 500 hp can be utelized



· Registered
K-RZ [email protected], 551 Hp 400 TQ
Joined
·
267 Posts
Discussion Starter · #109 ·
Hey would the swap be any different if I used a 5 speed trans with the k24a2 ?
No diffenret. I am using same setup now.both my cars have k24a2 with 5speed transmissions. 5 speeds have longer gear ratios which helps me because i have turbos.
Read my thread where i have covered in detail which 6 speed and 5speed trannies are compatible with HAsport mounts


· Registered
K-RZ [email protected], 551 Hp 400 TQ
Joined
·
267 Posts
Discussion Starter · #111 · (Edited)
Some one is doing a k24 swap in a ZF2 chassis in Malaysia. He needs a ZF2 ECU pin outs.
If anyone can provide and share it,it will be very helpful to next all ZF2 K-swaps.
i have searched everywhere but could not find it. Even Helm's manuals dont have it. It is supposed to be in "Service Manual". Helms have other manuals but dont have this


· Registered
K-RZ [email protected], 551 Hp 400 TQ
Joined
·
267 Posts
Discussion Starter · #113 ·
Regarding the fuel pump, I seen you mentioned an AEM pump which is a direct replacement. If I turbo the original L15 engine to a small 190hp, Do you think I would need to upgrade wiring like you have ?
Absolutely no need. the stock pump and line support upto 250 hp easy. I am waiting for my fuel pump on my Honda Fit k24a2 Turbo,out of curiosity i have tuned it upto 8 psi on Gt3076 turbo on stock pump. that equals near 300+ hp easy. So you are very safe even upto 300 hp mark.no need to change the pump. Just use bigger injectors and you are good to go


· Registered
Joined
·
181 Posts
No one has given any feedback? If you guys find some difficulty in swapping or understanding some portions of swap,just ask away. Diagrams need more elaboration,wiring etc etc.just ask.
I guess a number of us still saving up for this project.

By the way, do you have any idea Civic FN2R and FD2R has the same ecu pinout as civic si 06-11's? I had a friend of mine did FN2R swap but I haven't got to see in detail.

Apart of that, I saw you did some modification on the sensor plug. Are you using K24A stock sensor working with the civic si ecu?


· Registered
2013 CR-Z EX
Joined
·
12 Posts
Some one is doing a k24 swap in a ZF2 chassis in Malaysia. He needs a ZF2 ECU pin outs.
If anyone can provide and share it, it will be very helpful to next all ZF2 K-swaps.
I have searched everywhere but could not find it. Even Helm's manuals don't have it. It is supposed to be in "Service Manual". Helms have other manuals but don't have this
Is the Zf2 ECU have 49 pins per plug. I have 2013 and just did a 9th gen si swap. I have the pin out.


· Registered
K-RZ [email protected], 551 Hp 400 TQ
Joined
·
267 Posts
Discussion Starter · #117 ·
Is the Zf2 ECU have 49 pins per plug. I have 2013 and just did a 9th gen si swap. I have the pin out.
Yes that would be helpful. Need ECU Plug-A of Zf2 and 2013 ECU Si Plug-A.
I pm you my email.Thanking in anticipation.
I will include those diagrams in wiring section.


· Registered
K-RZ [email protected], 551 Hp 400 TQ
Joined
·
267 Posts
Discussion Starter · #118 ·
Good new and many thanks to user M1keBr0wn
2013 CRZ(Zf2) and 2013 Si wiring diagrams have been added to wiring section.(Page3). and that post have more than 20 pictures so forum is not letting me edit and add them there. So i have shared them in dropbox folder there and here.Plus the main wiring diagram have also been improved.


· Registered
Joined
·
19 Posts
Good new and many thanks to user M1keBr0wn
2013 CRZ(Zf2) and 2013 Si wiring diagrams have been added to wiring section.(Page3). and that post have more than 20 pictures so forum is not letting me edit and add them there. So i have shared them in dropbox folder there and here.Plus the main wiring diagram have also been improved.
Just want to say “Thank you” great work!
I have read your complete post.. several times. I own a 2013 CRZ Premium “Canadian Version”
Seems like the first stage in doing a kswap is choosing the correct ECU and wiring harness?
Considering I own a 2013 you suggest to go with a 2012-2015 Canadian civic si ECU and wiring harness?
If I decide I would like to run a K20z3 or a K24a2 will I still run the 9th gen (2012-2015si) harness and ECU
Lastly can you explain the differences between the 06-11si harness and ECU versus the 2012-2015si Harness and ECU.
