DIY: Polarized/convex/heated side mirrors w/LED turn signal

43501 Views 103 Replies 42 Participants Last post by  chrisrkooz
Disclaimer: For informative/entertainment purposes only. Not responsible for user error. This was installed on 2011 EX w/Navi.

Brand name: Safe Driving
Part number: 271104

Item found by resibud (thank you!). From resibud:
Japanese site Rakuten. These are convex mirrors with integrated turn signals and heater.
The name of the person to contact is : Rin Yamakawa

Email: [email protected]
Rakuten site translated to English
My cost with heater/LED signal = 14070 Japanese Yen = $144.471 US Dollar (included shipping to Tennessee/paypal fee). To order, I sent an email to him in English and then used an online translator to translate to Japanese. I ordered mine on Aug. 15 and received delivery on Aug. 22. Great turn-around from Japan! Delivery requires signature.

Tools needed:
Trim tool (to pry off OEM mirror)
Philips screwdriver
Electrical tape

Installation time:
I am guessing 15+ minutes for each mirror. I have to guess because I paused to take pictures for this DIY

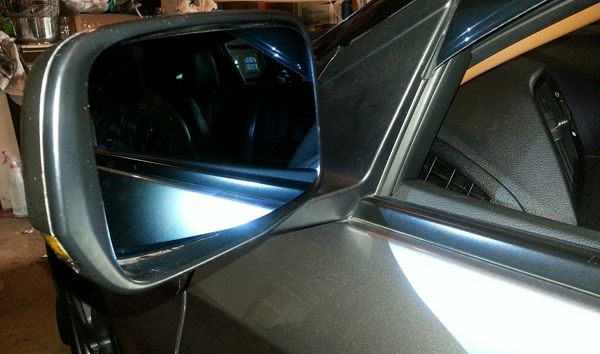

Working on the Left (driver's side) mirror: Remove OEM mirror. I used a trim tool. Pry up at the mirror bottom and pull out. Here is the back of the mirror after removal:

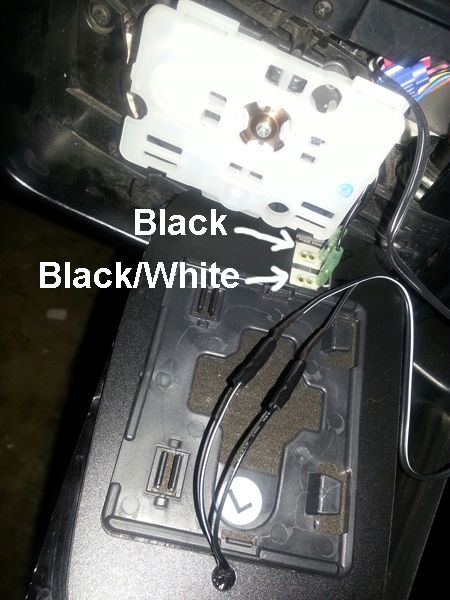

Before you remove the wires from the OEM mirror, mark the new mirror in accordance. One wire is solid black and the other is black w/a bit of white on it. I wrote "B" (for "black"), on the new mirror and "W" (for black/white).

Back of new mirror:


Remove the white plastic motor cover to give yourself some working room: Remove center screw and pull the white cover off. There are (2) "prongs" inside a greased rubber boot on the bottom and left side. Please see the "on edit" at the bottom of this DIY. Instead of removing the motor cover, you can remove the entire motor.


Pull all the OEM colored and black/white heater wires from their retainer. You will be splicing into the pink and purple wires (OEM turn signal wires).


Cut a short length of one of the supplied wire bundles. The length I cut was way too long but I wanted a lot of work room:


Using the clamp connectors supplied, splice the
BLACK wire into the PINK oem wire
BLACK/WHITE wire into the PURPLE oem wire:


Instructions that came with the mirrors:


Take the wire bundle that you cut a length of and connect the BLACK to BLACK and BLACK/WHITE to BLACK/WHITE on the mirror:


Connect the OEM heater wires to the new mirror. Remember your markings from the beginning (black and black/white). Slide the rubber cover back over the connection of the turn signal wires and apply electrical tape for insurance. I forgot to take a pic of it w/the electrical tape applied. Reinsert all the OEM wires back into the plastic retainer. Reinstall the white plastic motor cover. It's a little tricky. On the two "prongs" that slide into the two rubber boots, there is one tab that must be aligned with the slot:


Test the turn signal and heater (turn on your rear defrost):


If everything tests fine, (also test the mirror motor), mount the new mirror into the housing. Peak under and align the top clips with the slots and swing the mirror down. There are 4 tabs left to push in. Make sure you hear them click in.


Hope this helps and if I have left anything out, please add-on.

on edit: resibud photo and advise. Instead of removing the white plastic motor cover and getting into the grease, remove the entire motor:

Yep, just did the passenger mirror and removing the entire motor is the way to go! Thanx again resibud.
See less See more
  • Like
Reactions: 3
1 - 17 of 104 Posts
I tested the OEM heat last night and the new heater after installation. No difference.
No hassle at all to get them from Japan. The guy shipped them on Monday and I had them the following Thursday.

If you didn't want to go to the trouble of wiring for the heat, he sells them w/out the heating element for a cheaper price.
That looks great!
Could you post a picture of the mirror without the lights on, just to see how it looks when not using the turn signal?

How 'bout 3 pics:

I thought the car was clean - these pics show otherwise . . . :blush:
See less See more
They look pretty similar to the T1R convex.. Hopefully have the same viewing angles.. We'll see since I trading up the T1R direct replacements for these..
First drive in the daylight with them today, couldn't believe the difference. Now I know why everyone who has the T1Rs gives them the thumbs-up. I kept looking into the mirrors - almost bought a curb . . . not really.
Had a request for a video of the blinker. Please forgive the loud music - just pulled in and I must be deaf.
See less See more
Scotty - make sure you drop the first clamp connector inside the housing like I did or they won't work :giggle:

ps - you will need all 4 clamp connectors - there are four splices
See less See more
Installed.. Straight forward. About 10-15 minutes a mirror.
Pics. Or it's just a rumor
And what happens if you drop a T1R from about 3 feet to concrete? This.. Dammit.. :lol: Sh!t happens..

Or yer a bumbling . . . jk!
What I like the best is the turn signal. I have a big grin when I have to turn :grin:

Hey, was trying to do it right when it dropped. Sitting in the car with the door shut to take a picture. Having someone else hold it kinda like I am in the pic.. She dropped it and that is my story and sticking to it.. All good tho..

And yea, I'm really liking the turn signals for a lot of reasons.. Looks great, functional and adds an additional safety feature when changing lanes etc..

Wiring the thing up was extremely easy. Anyone can do it..
My attempt to pick on you = FAIL

And yes to marcl211 - if I can do it, anyone can
Well that does it. U picked on yerself

Sent by my S3 because my computer is 2 heavy
Um that's 2 X 2

Sent by my S3 because my computer is 2 heavy
Holy fast shipping, Batman!
Ordered late Monday (wee hours of Tuesday AM in Japan), and received them today.
(of course, I have not opened the box yet - could be I got 'em for an F-150, but I'm an optimist!).
I was surprised at the fast shipping too.
Hey - don't worry, F-150 horns work on a CRZ - maybe the mirrors will too :thumbsup:
The website says "2011 up". But I would ask when you contact him.
Got mine today!! so excited. Took 5 days to get here from Japan! Thanks for the instructions
Great! Love mine and they are still going strong. Make sure you splice/tape the wires good and snug. My passenger wire came loose a bit and I had to mend.
