This thread will be dedicated to wheel fitment specific to the cr-z. please follow the format...

Wheel info:
wheel brand, diameter, width, offset, and face (if possible), weight of wheel (if possible).

Tire info:
sizing, and brand/model

Suspension info:
any info regarding drop

Pictures of the wheel fitment, minimum 3 pictures please. And please make the pictures relevant, rather than an artsy shot.

please post only if you have something to contribute. start a new thread or pm if you'd like to comment on someone's wheels/fitment.


·
Registered
Joined
·
1,336 Posts
Discussion Starter #4

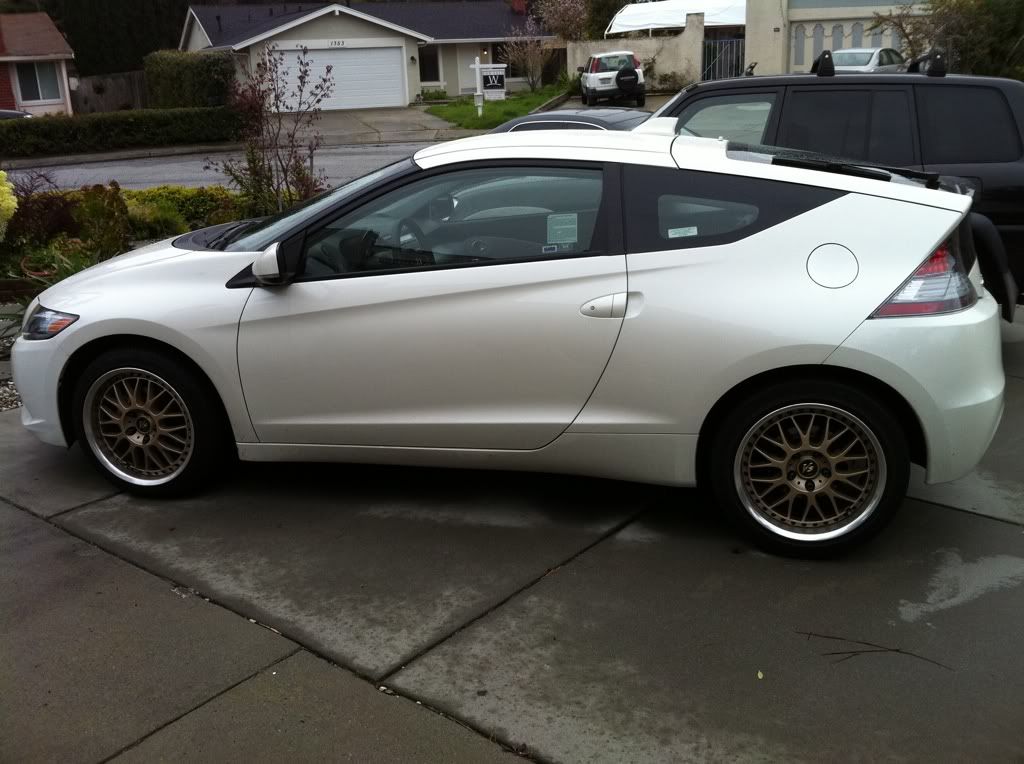

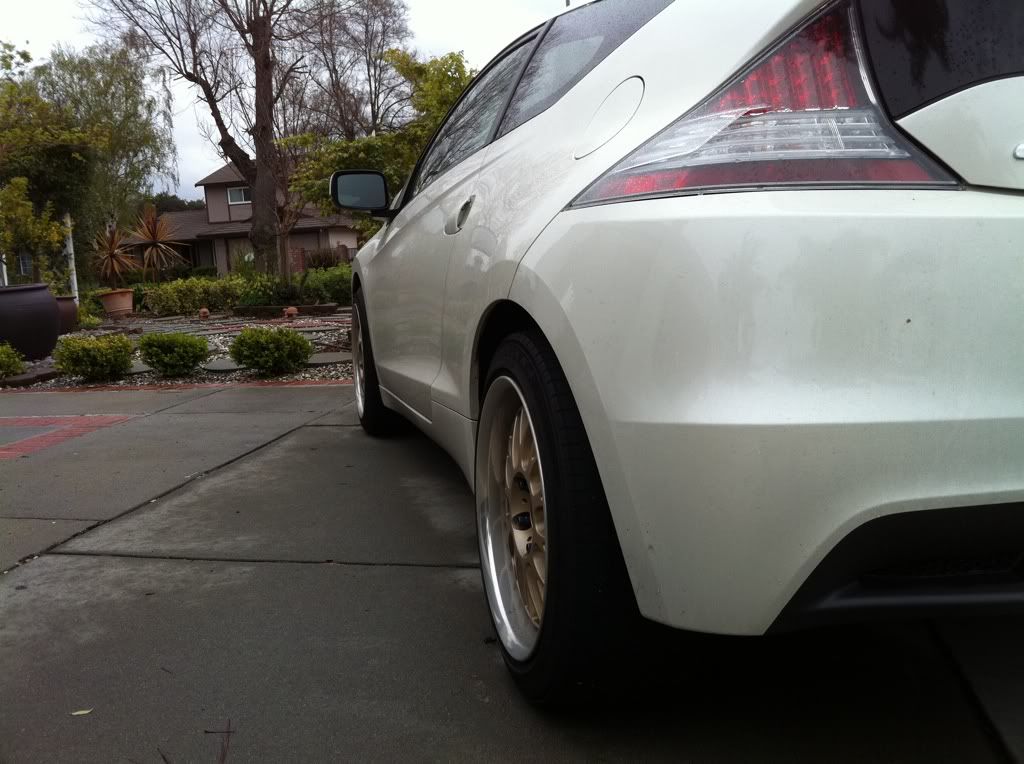

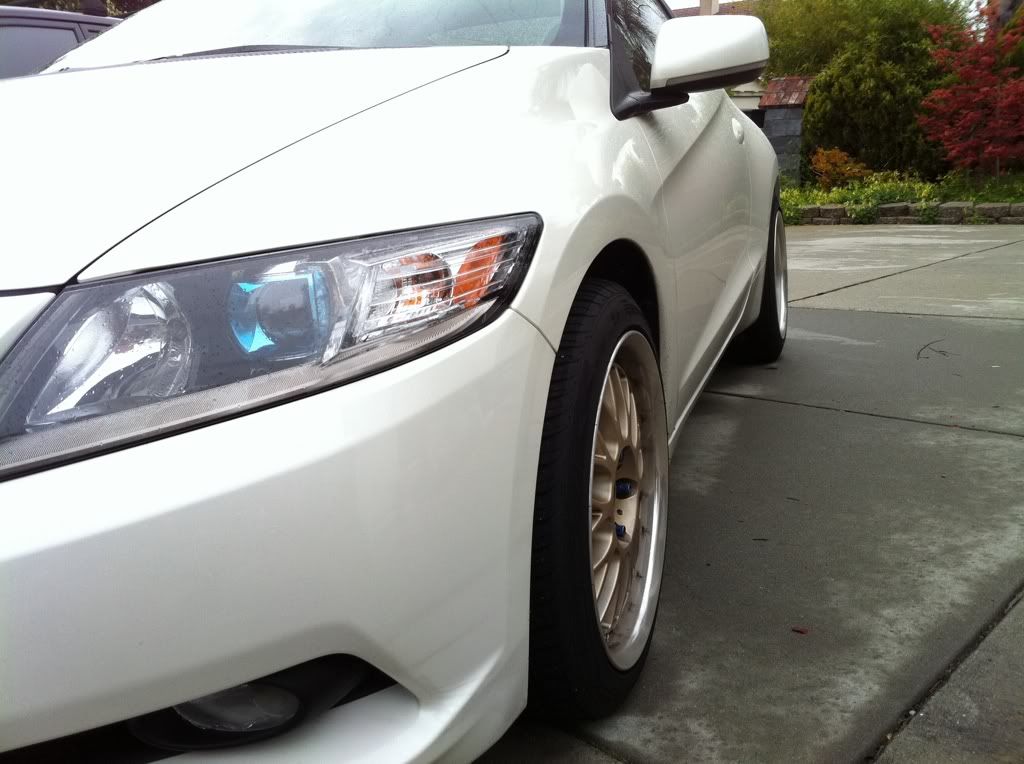

Work Meister s1 2piece
f:17x9 +34 A-disk w/ 205/40/17 falken 512
r: 17x9 +34 O-disk w/ 215/40/17 federal 595
Hks Hypermax 3 coilovers currently set to highest settings. will likely lower the car a little more.
no rubbing with this setup.







5/18/11: more loward





·
Registered
Joined
·
1,199 Posts
Wheel brand: Enkei RPF1
Wheel size: 17x9 +45
Tire size: 245/40-17 (brand unknown)
Suspension: OEM stock
Only mounted two wheels shown, so I dont know if they rub anywhere.











·
Registered
Joined
·
1,498 Posts
I went with the Spoon Blue color on my Axis Reverb wheels. They are identical to the Advan TCII wheels with the hollow spokes.

Wheels are 18x7.5 +45 with Falken 225/40R18

Overall Diameter is about the same.... Speedo reads 1 mph slower then stock.

Lowered on B&G S2 Lowering Springs. They have a great drop and ride very smooth.





·
Registered
Joined
·
270 Posts



Spoon CR93 17x8.5 +53 offset with 225/45/17. Depending on the ride height so with stock height no rubbing issues.

I made it flusher with +5mm spacers at the front and 3mm at the rear !



Thanks
Ben


·
Capt'n Jack
Joined
·
9,414 Posts
^ Without trying to pollute the thread - this is outstanding. Great idea roddy. Thank you.

Back to pics and topic...


·
Registered
Joined
·
1,396 Posts






17x8 235/40/17 +45. Rubbed on the front inner fender liner over bumps at full lock :( selling the tires and getting 225's or 215's. stock height.

anyone want to chime in on some experiences or anything. Maybe 225's are what i need. Im also looking for a lighter tire. the kuhmos i had were 24 lbs per tire! yikes.


·
Registered
Joined
·
314 Posts
I like very few aftermarket wheels, but I actually really like those first three that Roddy posted. Especially the first set, do they come in 16"?


·
Registered
Joined
·
758 Posts
Man, those Work Meister looks good. Lowering the car even more would amazing!

Work Emotion 11R Matte Bronze 17x8 +35 Offset. Tires - 225/45/17
Cusco Zero1 Coils with a 1.50" drop. The back rubs when going over bumps. Different size tires (215/40) should not rub









·
Registered
Joined
·
758 Posts
Mugen MF10 Bronze 16x7 +50 Offset. Tires - 215/45/16 - 11lbs per wheel (these are soo light, a big difference when driving)

Cusco Zero1 Coils lowest drop. No Rubbing.









·
Registered
Joined
·
2,553 Posts
you guys are making me want to put on my new rims already.

i'll probably swap them at end of this week or mid to end of next week.
i'll update this post with pics when i do.

Sparco Pista
17x7
45mm offset
19.8lbs

Tires: 205/45-17





·
Registered
Joined
·
424 Posts
Tenzo 18"

Wheels: Tenzo R Sport DC-5 Version 2 : 18x8" : +45 Offset : Matte Black/Machined Lip and Center : 21.7 lbs

Tires: Yokohama S Drive : 225/35/18 : 22 lbs : Treadwear 300

Suspension: TEIN SS Coilovers : Drop 1.25"









·
Capt'n Jack
Joined
·
9,414 Posts
^ the best fit and look I have seen. Very well selected.
